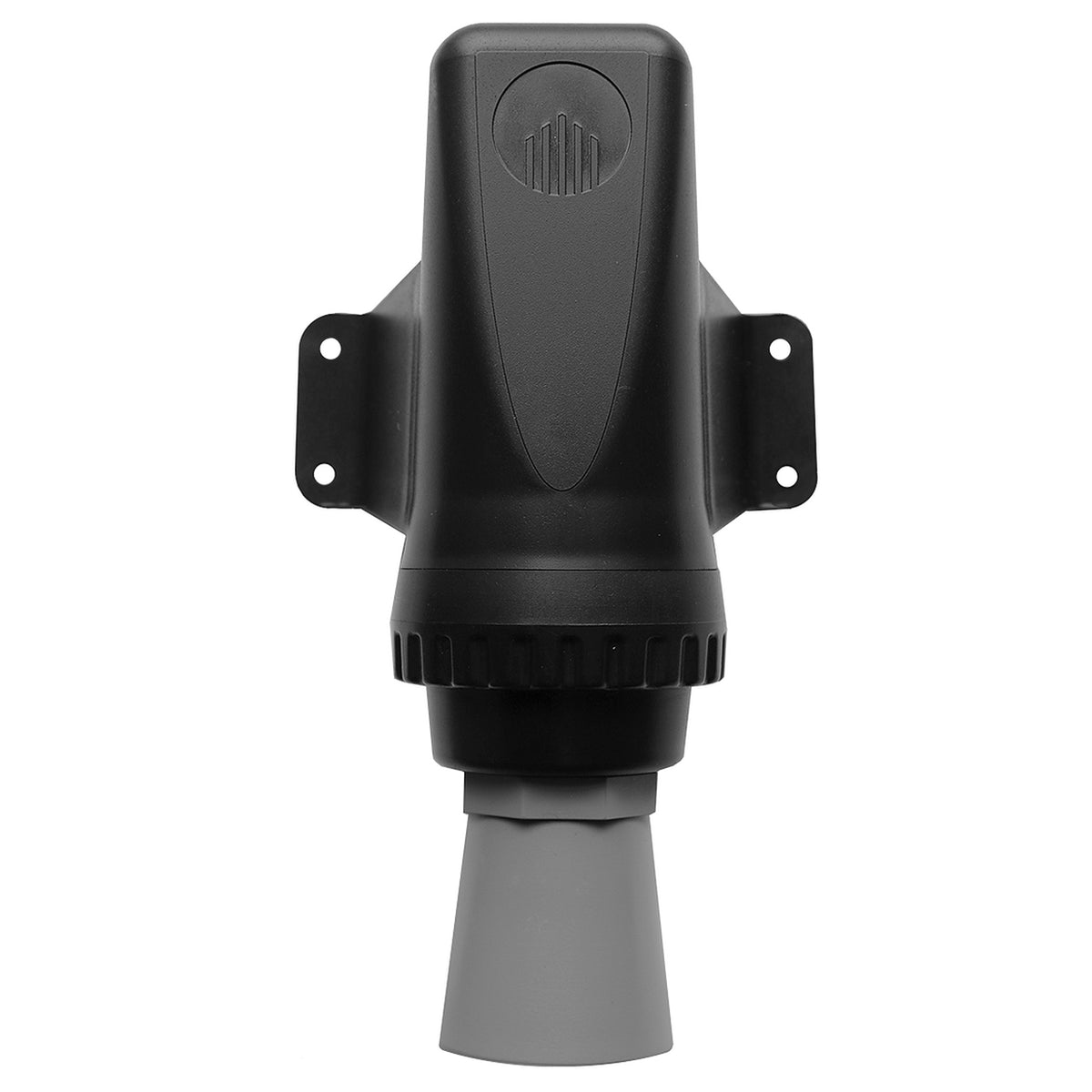

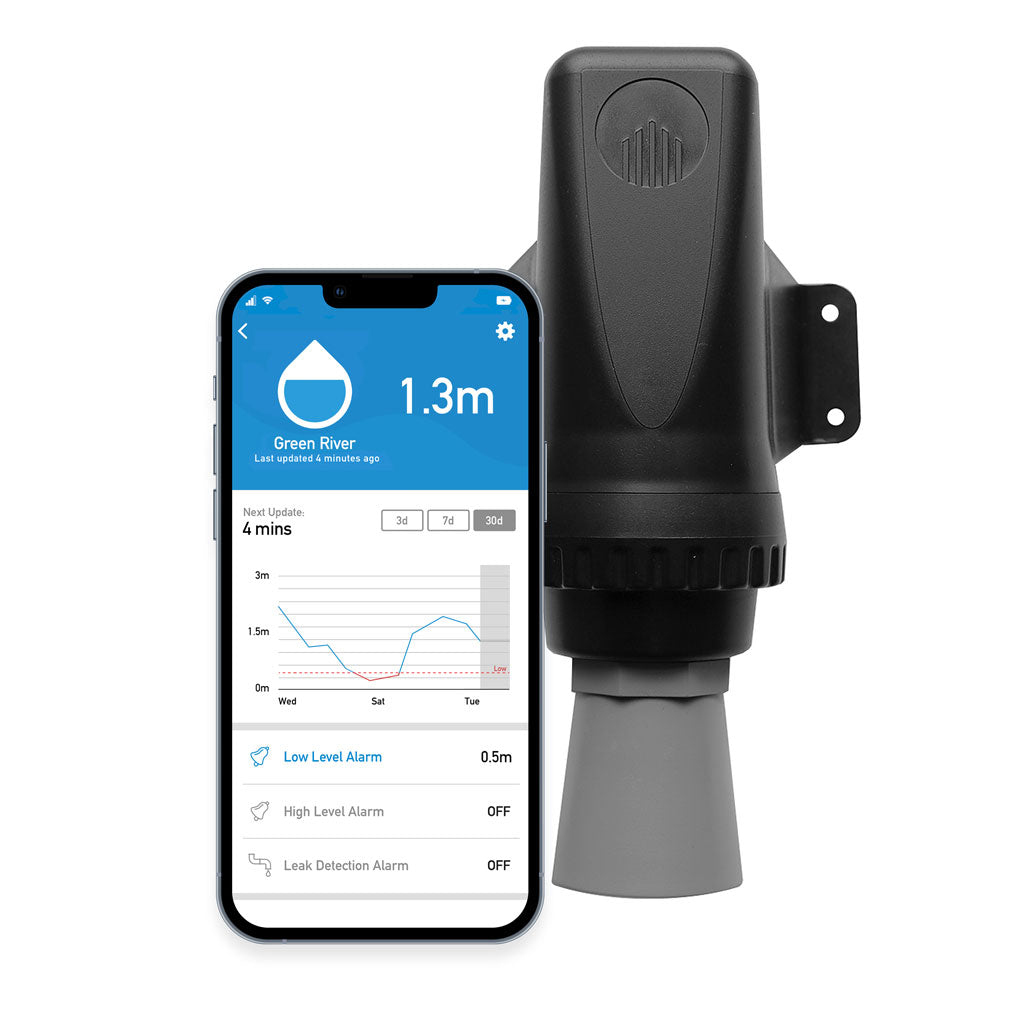

LS1 Ultrasonic Level Sensor

The Waterwatch LS1 is an integral part of any flood warning or water level monitoring solution. Monitor open water bodies, sewer/stormwater systems, or open-top tanks. The Waterwatch LS1 is the easiest to use and configurable level sensing solution available.



The LS1 has been superseded by the LS1-R.

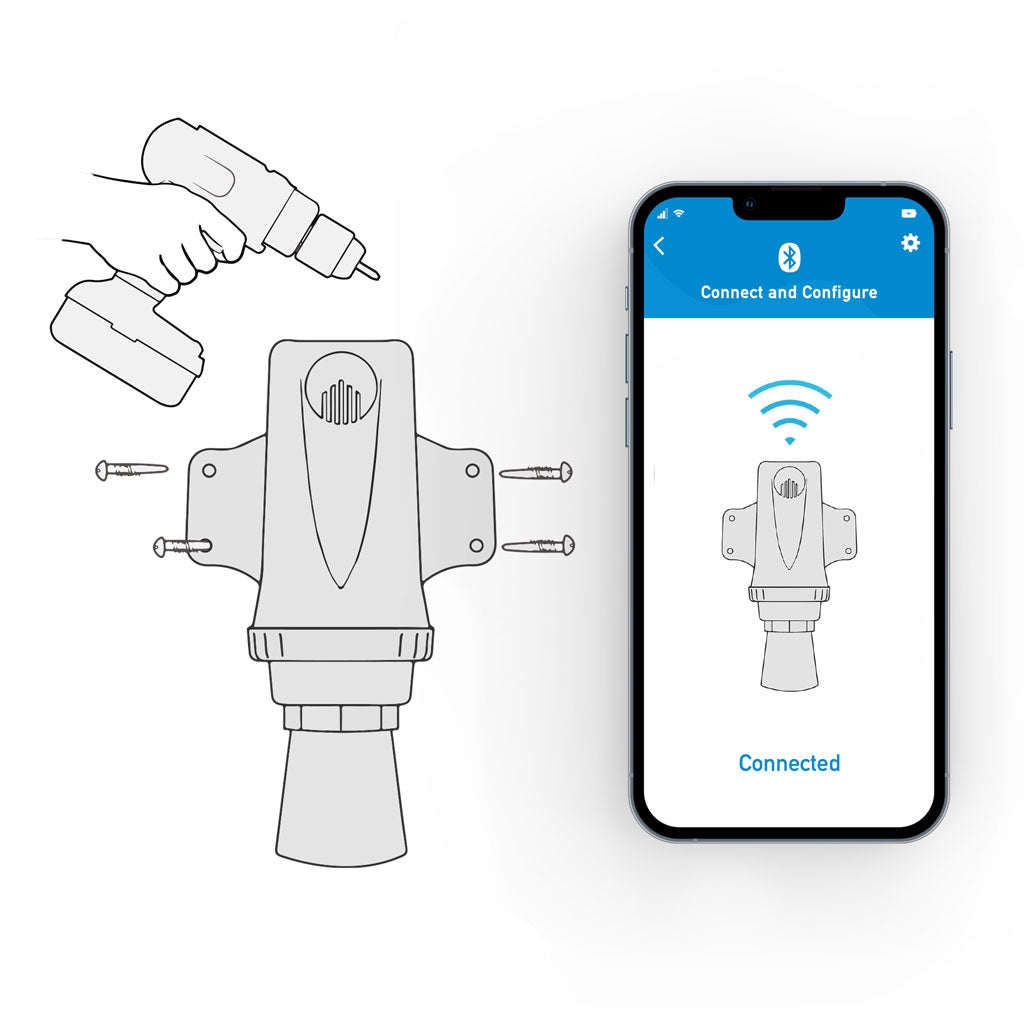

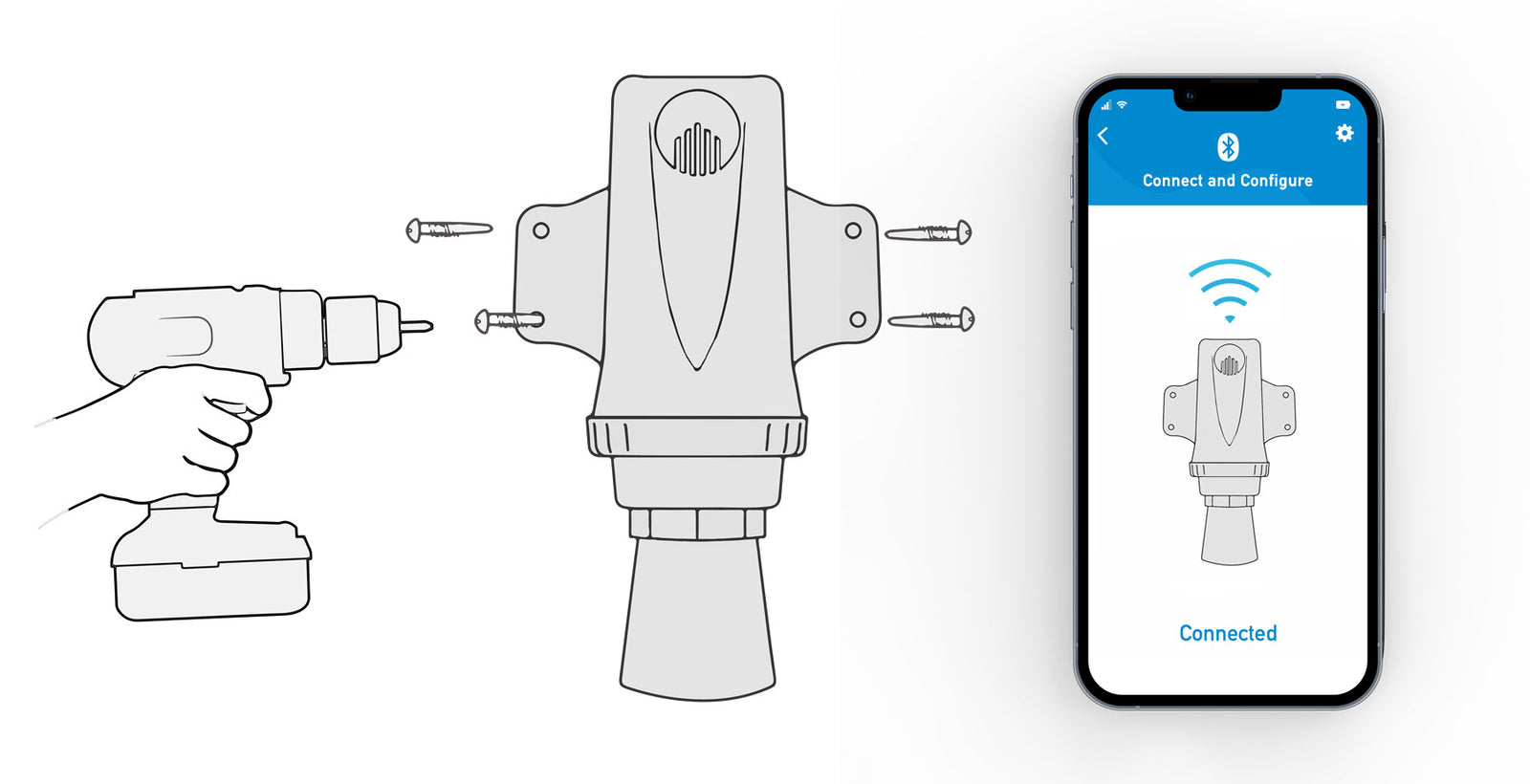

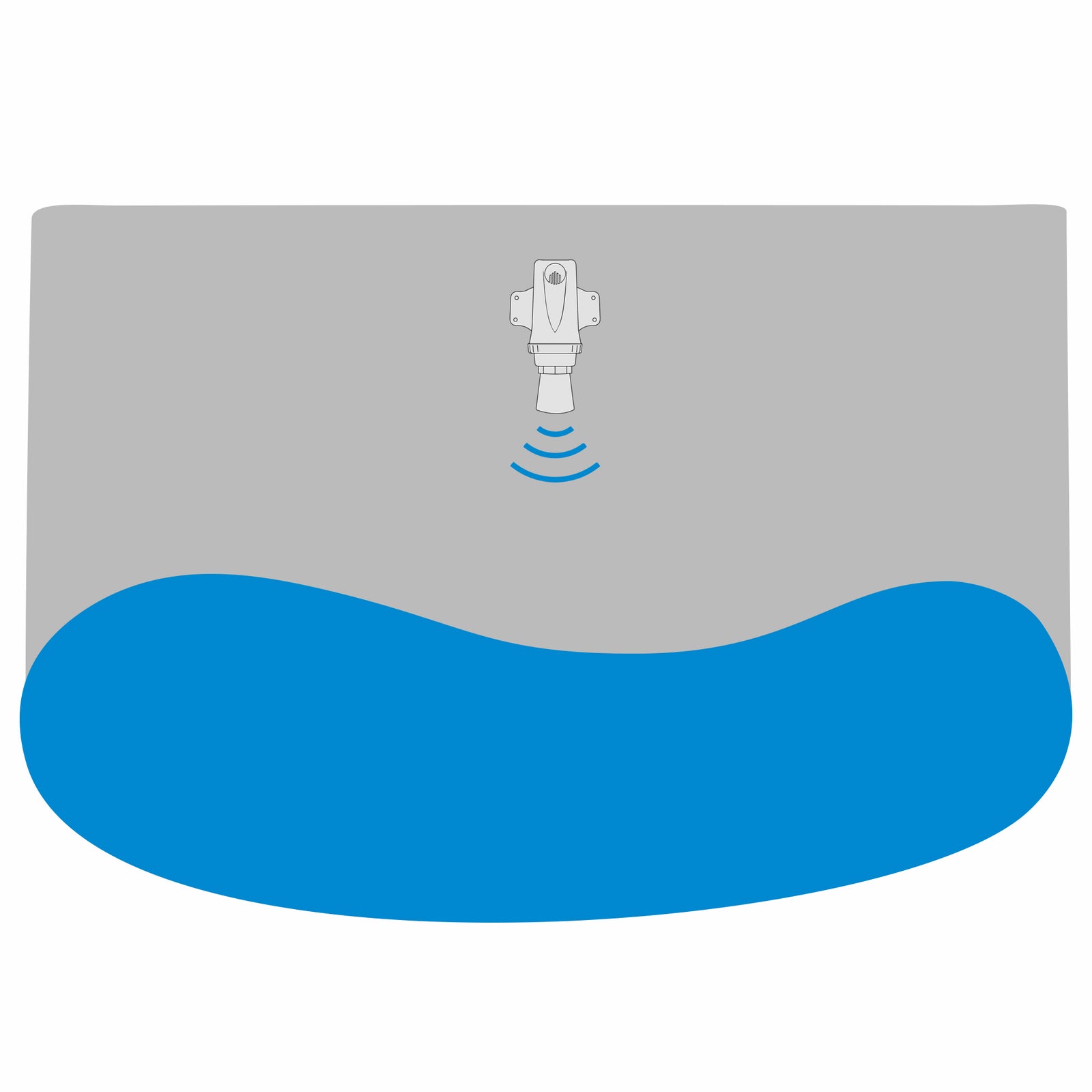

Diagram showing how to quickly attach and connect to sensor

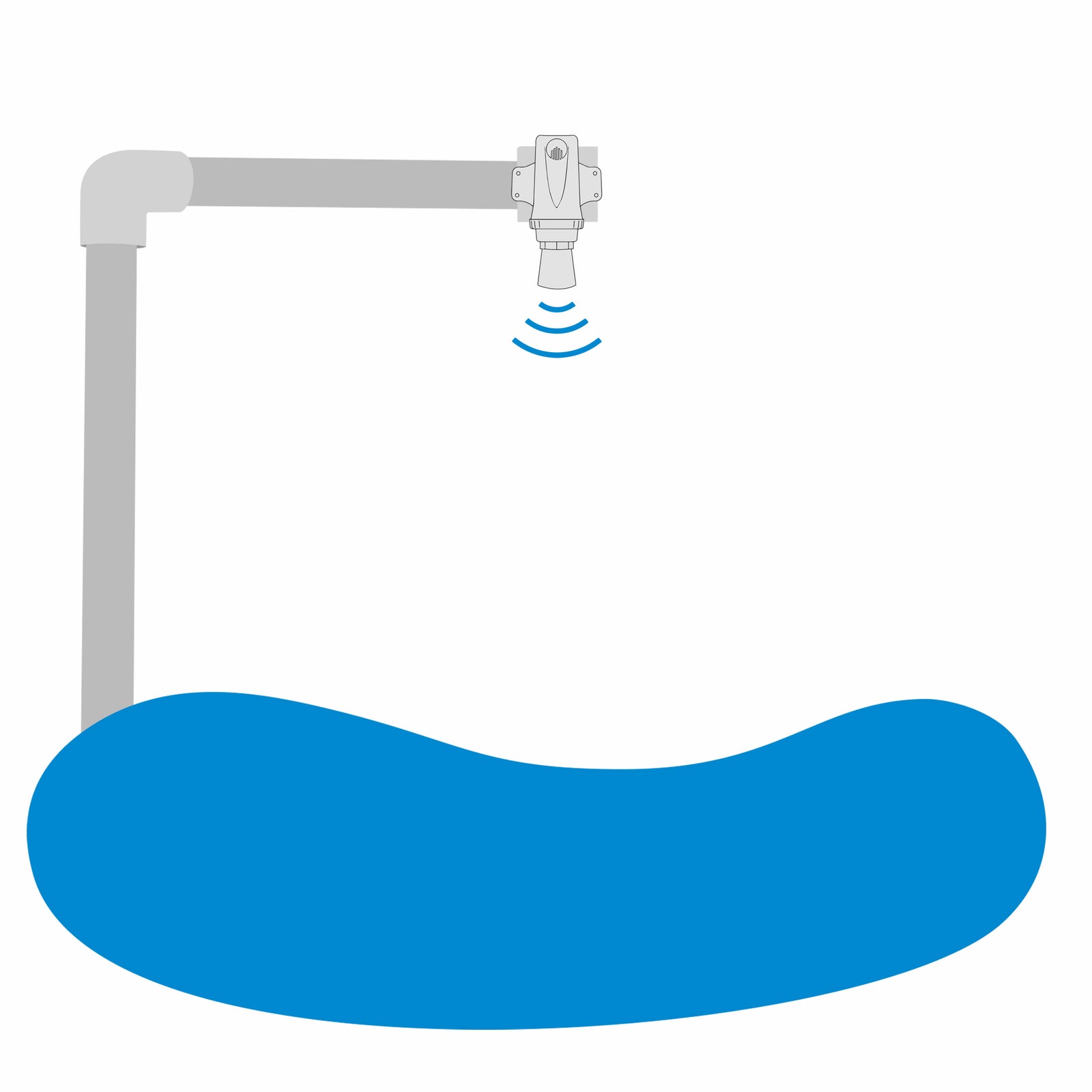

Diagram showing how to quickly attach and connect to sensor

EASY AND QUICK DIY INSTALLATION


SPECIFICATIONS

Battery Life:
  • 3+ years
Type:
  • 3.6v Lithium Primary
Capacity:
  • 20Ah
Connection Options 4G:
  • LTE-M
    Spark
    Vodafone
    Telstra
Other:
  • Sigfox RC4
Size and Weight Dimensions:
  • 185x105x80mm
Weight:
  • 280g
Enclosure Material:
  • Polycarbonate + PBT
Mounting:
  • M4 Screw
Environment Protection:
  • IP67 - Waterproof and UV resistant
Operation temperature:
  • -40°C to +85°C
Recommended storage temperature:
  • +15°C to +25°C

Battery

Life: 3+ years

Type: 3.6v Lithium Primary

Capacity: 20Ah

Connection Options

4G: LTE-M, Spark, Vodafone, Telstra

Other: Sigfox RC4

Size and Weight

Dimensions: 185x105x80mm

Weight: 280g

Enclosure Material: Polycarbonate + PBT

Mounting: M4 Screw

Environment

Protection: IP67 - Waterproof and UV resistant

Operation temperature: -40°C to +85°C

Recommended storage temperature: +15°C to +25°C
